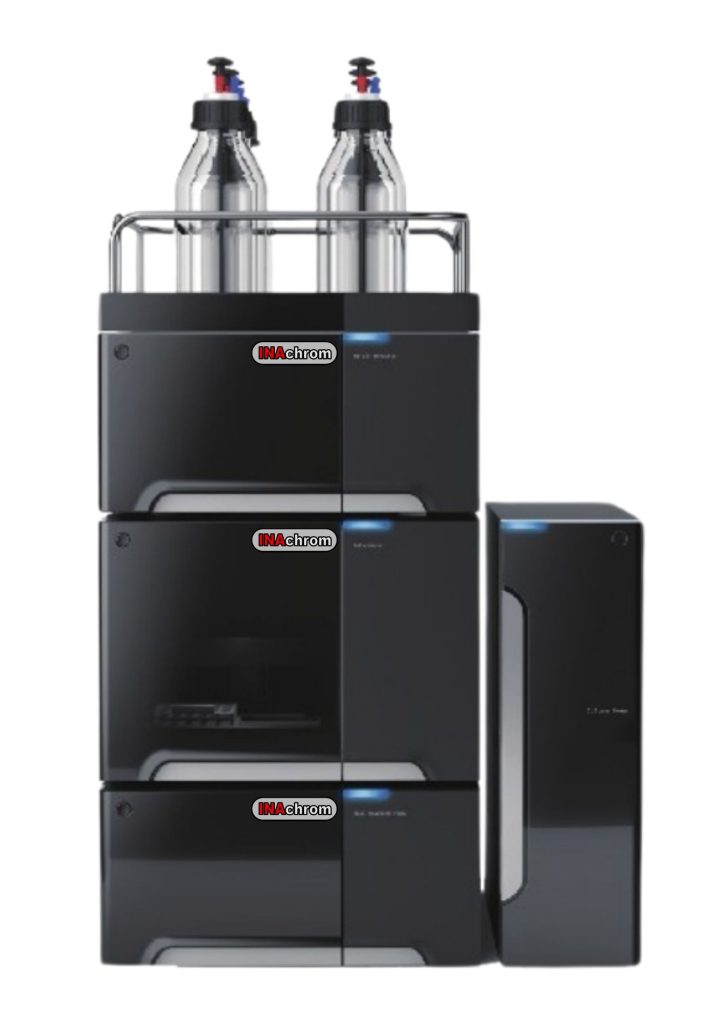

INACHROM UHPLC
Indonesian First UHPLC Brand
Eficient HPLC / UHPLC solution make your lab more eficient
The intelligent UHPLC system provides you with long-term, continuous and stable operation and a variety of configuration options.
Higher analysis and detection effiffifficiency makes you confifident in the detection results and worthy of your trust.
Economical, practical and long-lasting return
“Economical and durable”, which is the true feeling from users for the intelligent ultra-high performance liquid chromatography system. The strict quality control system ensures the high quality standard of each component, long operation time and long maintenance interval. In addition, sophisticated built-in diagnostic maintenance tools provide more reliable and safe operation.g re

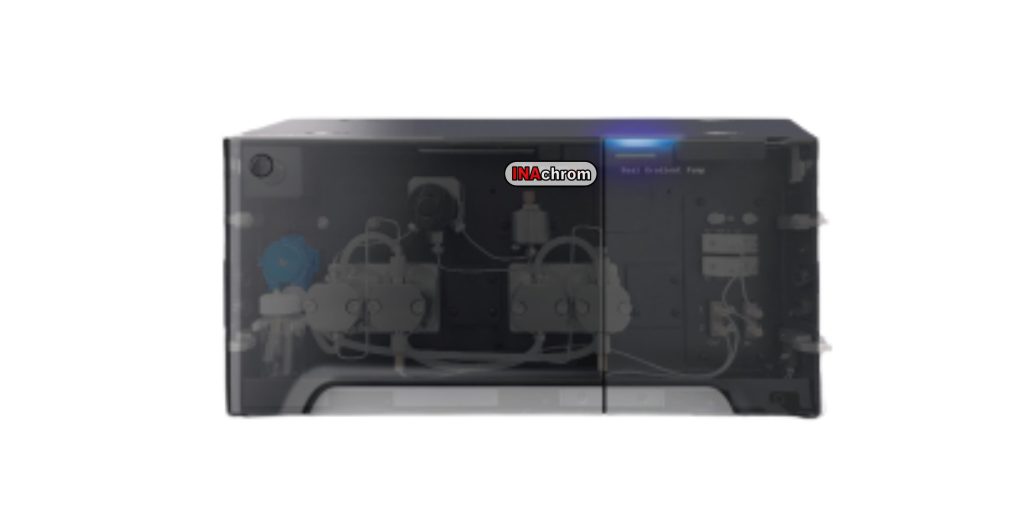

UHPLC PUMP
Beyond conventional pressure delivery
The ultra-high pressure pump can provide a pressure range of ≥ 10500psi (72MPa), a flow range of 10ml/min, and different confifiguration types such as isocratic, binary, quaternary and dual ternary. A more stable and uniform pump gradient ensures better sensitivity and more reliable qualitative and quantitative repeatability. Ultra-high pressure infusion pump can support up to four kinds of solvents at most, which enables you to obtain better flflexibility in automatic solvent mixing and is suitable for various conventional applications and research and development.

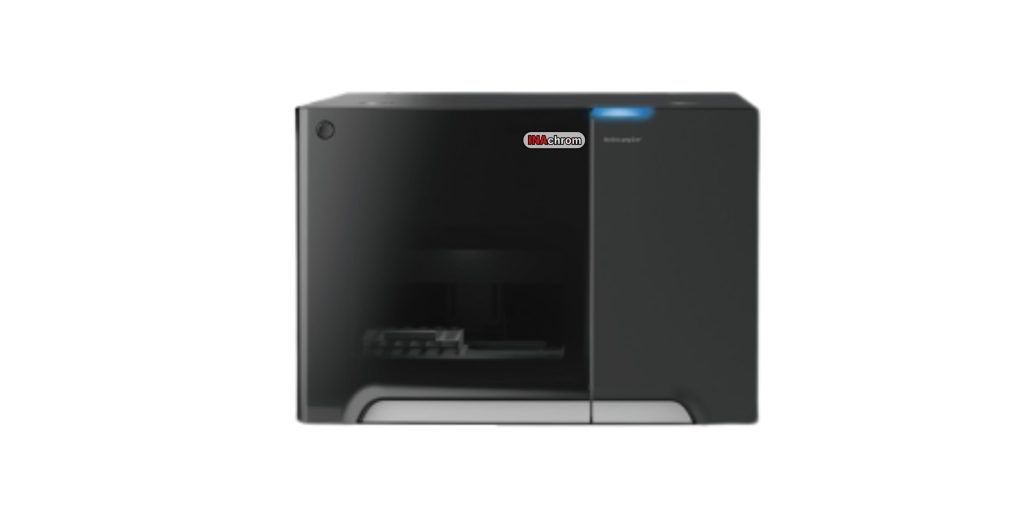

UHPLC AUTOSAMPLER
Efficient sample delivery and analysis
The auto sampler provides you with unparalleled flexibility and expansibility. The flflexible sample tray selection (2*54 or 2*96 well plate) can methodically process sequence operation, including cross sequence operation. The graphical sample tray selection interface in the data processing system is more convenient for setting and analysis. The high injection repeatability is lower than 0.3% RSD, combined with multiple injection modes, provides guarantee for obtaining accurate and reliable quantitative results. The highly scalable automatic sampler can flexibly switch to online-SPE. The leading overlapping sampling technology greatly improves the efficiency. The internal and external needle washing comprehensively reduces the sample hangover to less than 0.0025%. The optional sample compartment refrigeration meets the environmental requirements of more biological samples.
Column Oven
Efficient column handling and switching
The high-capacity column oven can accommodate three 300mm columns, and the accommodation range of other short columns is doubled. Each column can be directly operated by the quick switching valve. Different methods can be automatically operated without disconnecting and reconnecting the column, which is convenient for the expansion of multi-dimensional chromatographic methods. The patented forced air circulation design makes the internal temperature field more uniform and maintains the temperature stability of ± 0.1 ℃. The recording of column using information ensures compliance with the requirements of regulatory guidelines, helps to avoid failures in the operation of important sequences, and avoids mismatches between stationary phases, solvents and temperatures.

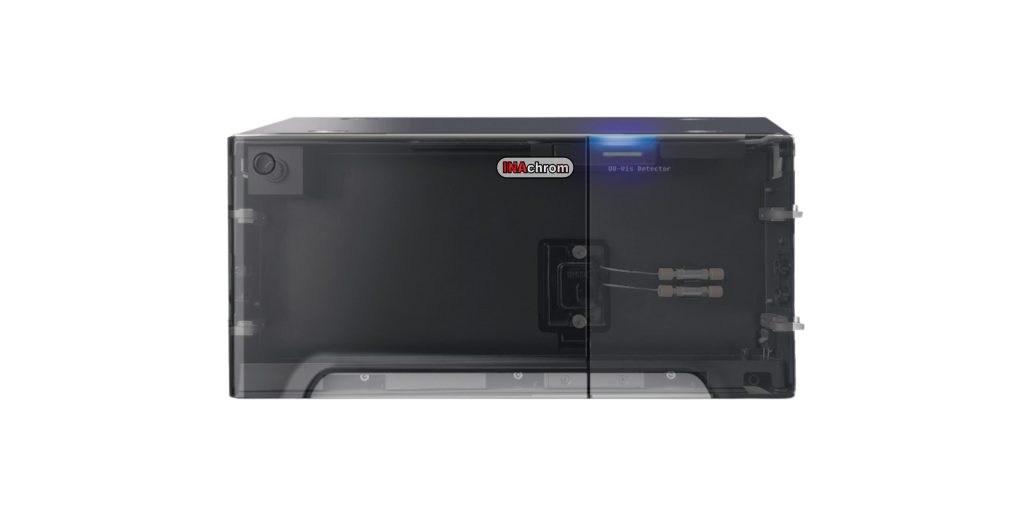

Detectors UV-Vis & PDA
Accurate and flflexible detection expansion
detection, sharing and analysis of various substances with diferent properties. Data acquisition rates of up to 100 Hz are available, allowing even the narrowest peaks in UHPLC to be easily acquired. DAD’s ultra-long optical path and 2μL micro-flflow cell ensure higher sensitivity and more accurate detection of trace substances; the carefully optimized optical system and leading circuit and structural design effectively reduce the overall machine noise and drift to ensure safe, reliable and accurate data collection for various application samples.
